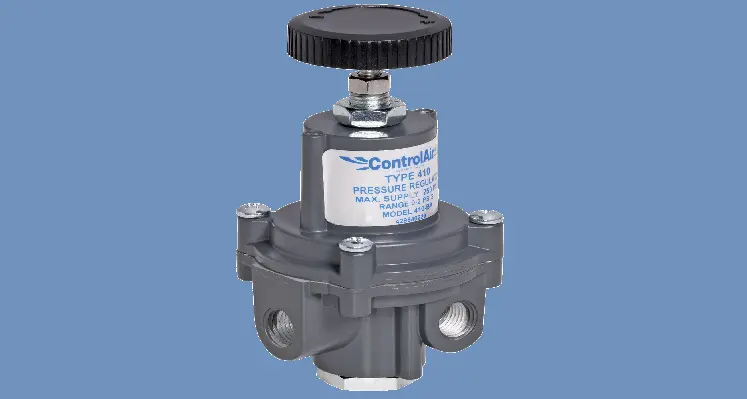

ControlAir LLC has launched the new Type 410 High Precision Pressure Regulator, which provides a high level of regulation accuracy and repeatability during variable operating conditions
With its combination of stability, reliability, and precision, the Type 410 is well-suited for a wide range of industrial applications where precise air pressure regulation is critical to performance and productivity. Applications include pneumatic control systems, pressure testing equipment, HVAC systems, laboratory instrumentation, and packaging machinery.
Durability and performance
Built to withstand the harshest industrial environments, the Type 410 features die-cast housings protected with a chromate finish and epoxy paint, ensuring long-lasting durability and performance. Every regulator undergoes rigorous pressure, leak, and flow tests at the factory before shipment.
The Type 410 High Precision Air Pressure Regulator is available in 1/4" porting. Output ranges include 0-2 psig (0-0.15 bar), 0-10 psig (0-0.7 bar), 0-30 psig (0-2 bar), 0-60 psig (0-4 bar), and 0-100 psig (0-7 bar). Exhaust capacity is 0.1 scfm (2.8 Nl/min) downstream pressure 5 psig (0.3 bar) above set point. Sensitivity is 1 inch (25.4 mm). Air consumption is less than 6 scfh (170 Nl/min). A wide temperature range of 0º to 160º F (-18º to 71º C).
